# Wi-Fi Settings

<figure><img src="https://3979528544-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFiflr3JdTVky5EaTMlxu%2Fuploads%2FW3S3HrZEic9eaIIsV3mL%2Fimage.png?alt=media&amp;token=d8ced5ed-55d9-41a2-9f68-8ae8b65d2831" alt=""><figcaption></figcaption></figure>

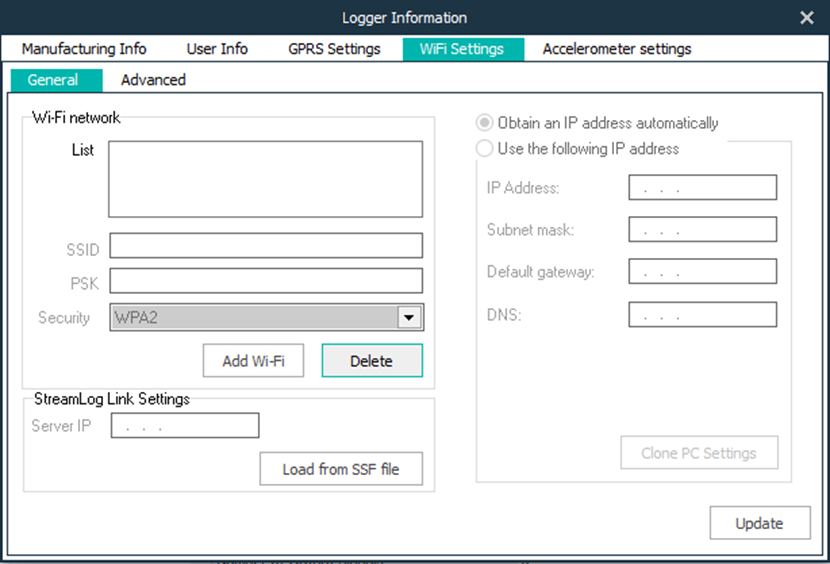

#### Wi-Fi Settings (General):

* **List**—The list of saved Wi-Fi networks.
* **SSID**—The service set identifier (name of the Wi-Fi Network).
* **PSK**—The pre-shared key.
* **Security**—The level of encryption you wish to use.

#### IP Address Settings:

* **Obtain an Ip address automatically**—The IP Address, Subnet Mask, Default Gateway and DNS Server addresses will all be obtained via DHCP.
* **Use the following IP address**—use this to manually assign the IP Address, Subnet Mask, Default Gateway and DNS Server addresses.

Clicking Scan Wi-Fi will allow you to select the Wi-Fi network for those in range. This will allow you to set the SSID and Security level automatically and correctly.&#x20;

#### Advanced Tab:

The Advanced tab contains settings to allow Extensible Authentication Protocol encapsulation to be configured. It also allows a proxy server to be configured.

#### StreamLog Link Settings:

**Server IP**—The IP Address of the StreamLog Server you wish to use.

Click load from the SSF file to retrieve the IP Address from the SSF File.

The window also contains an 'Update' button, which allows the settings to be sent to the Logger.


---
