# Method 1

Select' Merge data into an IVD file with separate charts' and click 'OK.'

 ![](https://3979528544-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFiflr3JdTVky5EaTMlxu%2Fuploads%2F5cy8i00Ttu6ZxpZ1F3ze%2Fimage.png?alt=media\&token=cb9e1571-26c1-4569-abeb-c68b37c31136)

 Name the file, choose the location to save the merged file, and click 'Save'.

 ![](https://3979528544-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFiflr3JdTVky5EaTMlxu%2Fuploads%2FLjgOsHMIN89sbkj7QigH%2Fimage.png?alt=media\&token=eeb6cb10-f4a9-4c18-9d44-9556f12871d7)

 Wait whilst the processing is complete.

 ![](https://3979528544-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFiflr3JdTVky5EaTMlxu%2Fuploads%2FYTno0VZVzxvb1dQNlc8I%2Fimage.png?alt=media\&token=ed667e7f-2e6e-41e8-9c25-964dc4e4896e)

In the 'Analysis' window, click any of the below-highlighted tabs to show the merged output on the oscilloscope.

 ![](https://3979528544-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFiflr3JdTVky5EaTMlxu%2Fuploads%2FaDTYwchm8aamfJGyHxqP%2Fimage.png?alt=media\&token=157c4614-ad72-4c1f-817d-a554b822dbcb)

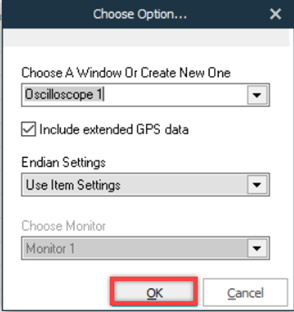

Click 'Ok' to continue.

&#x20;<img src="https://3979528544-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFiflr3JdTVky5EaTMlxu%2Fuploads%2FMc9sH7Aoa0AS0l7hMCfV%2Fimage.png?alt=media&#x26;token=5c0e7cc3-1aa7-4254-baa7-9f5b44cb1ff2" alt="" data-size="original">

The output on the oscilloscope screen shows the merged data into an IVD file but on separate charts.

#### Chart 1

<figure><img src="https://3979528544-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFiflr3JdTVky5EaTMlxu%2Fuploads%2FxyatM9yzJo0xpHojDu1f%2Fimage.png?alt=media&#x26;token=08bc9f4f-05f5-439d-b19d-5d58e9370f32" alt=""><figcaption></figcaption></figure>

#### Chart 2

<figure><img src="https://3979528544-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFiflr3JdTVky5EaTMlxu%2Fuploads%2FC6ojwDqMo6mmk5Ml5LwY%2Fimage.png?alt=media&#x26;token=c976e218-2fc9-490b-b3a8-b5886f45ce1c" alt=""><figcaption></figcaption></figure>
