# Using Digital Switch to Start Logging in a Rebel Logger

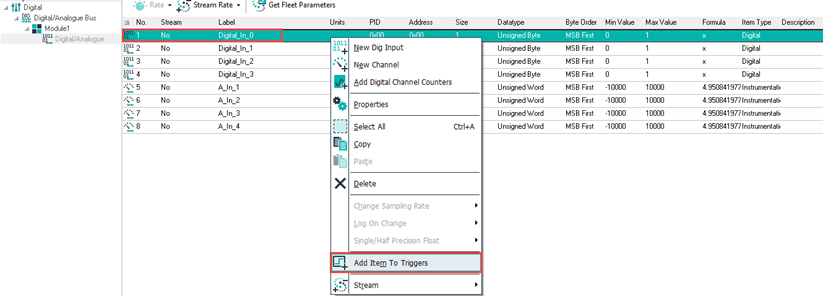

Right-click Digital 0 (The Digital Switch is connected to Digital Input 0).

Select Add Item to Trigger.

<figure><img src="/files/0oOwJAxS65IWgQn0c32c" alt=""><figcaption></figcaption></figure>

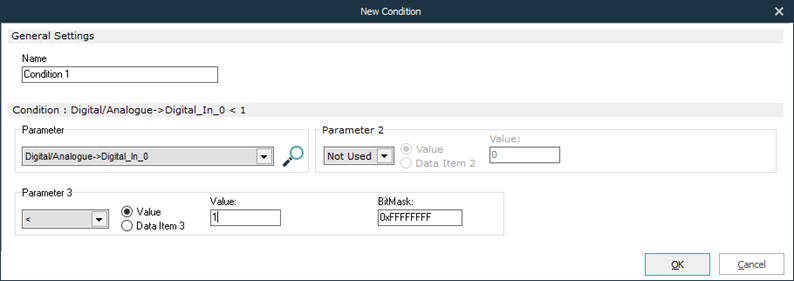

Create a start condition with Parameter 3 as <.

So, in this case, the condition is true when the Digital In 0 changes from 1 to 0.

<figure><img src="/files/L4OYA2Zg7uyMkZQgP2y6" alt=""><figcaption></figcaption></figure>

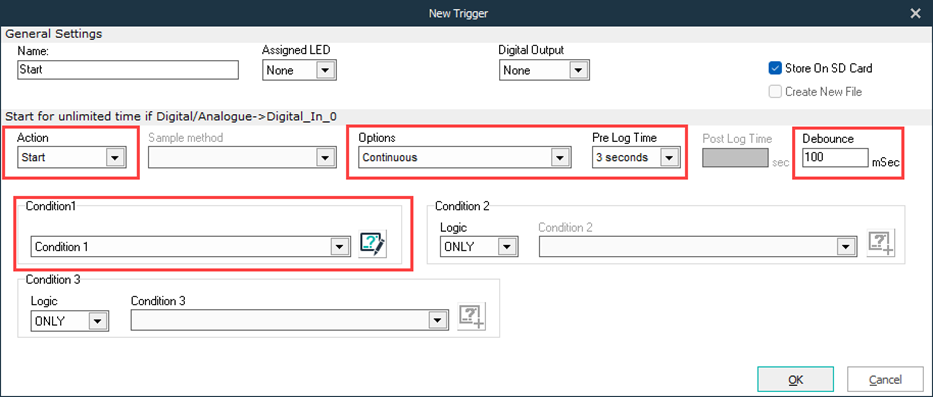

Create New Trigger

<figure><img src="/files/bD1Lr5ZyzlogOUHdr23K" alt=""><figcaption></figcaption></figure>

* Provide a name for the trigger.
* Select the action as Start.
* Options as Continuous.
* Select the condition which was made in Step 3.
* Provide a debounce of a few milliseconds so that it won’t consider sudden changes in the switch that happen rapidly due to any issue with the switch.

<figure><img src="/files/JYHFGQpgIR0W3hzVNgyn" alt=""><figcaption></figcaption></figure>

With the above settings, the logger will start logging when the switch is pressed.

{% hint style="info" %}

#### Notes:

* Other actions, sample methods, options, and pre-log time are available.
* Ensure the trigger functionality is appropriately checked before sending the vehicle for trial.
* You can connect a Push-Button switch between PIN 9 and PIN 11 of the Multiconnect Cables Dig & Analog connector.
  {% endhint %}


---
