# Making a Configuration in Dialog to Log K-Box
Create a new Configuration.
Enable AUX Power ON in the settings tab. Click OK.

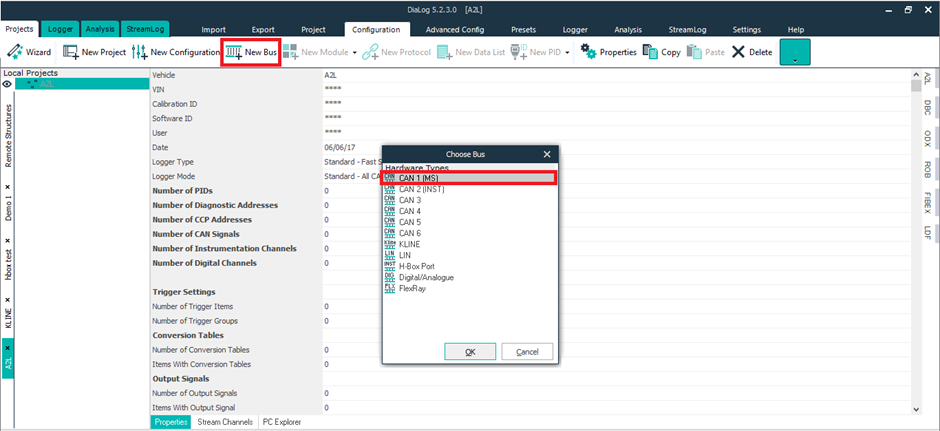

Create a new BUS.
Select CAN 1 (MS) from the pop-up menu.

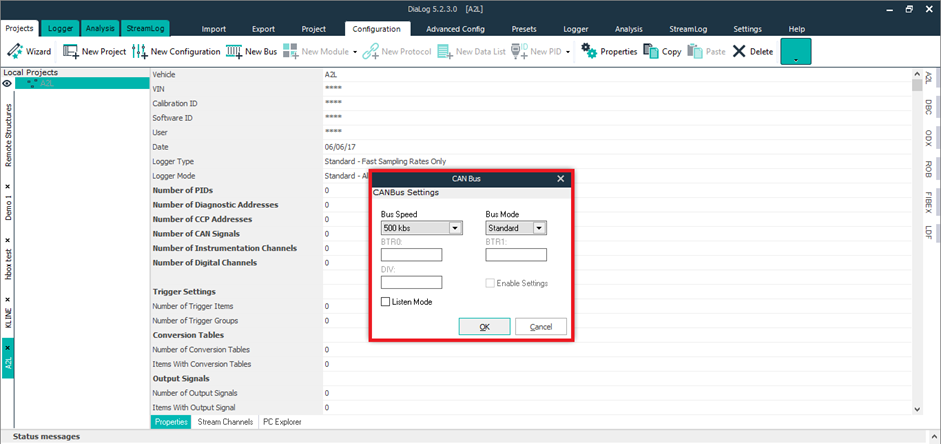

Enter the BUS properties.
Create a New Protocol.

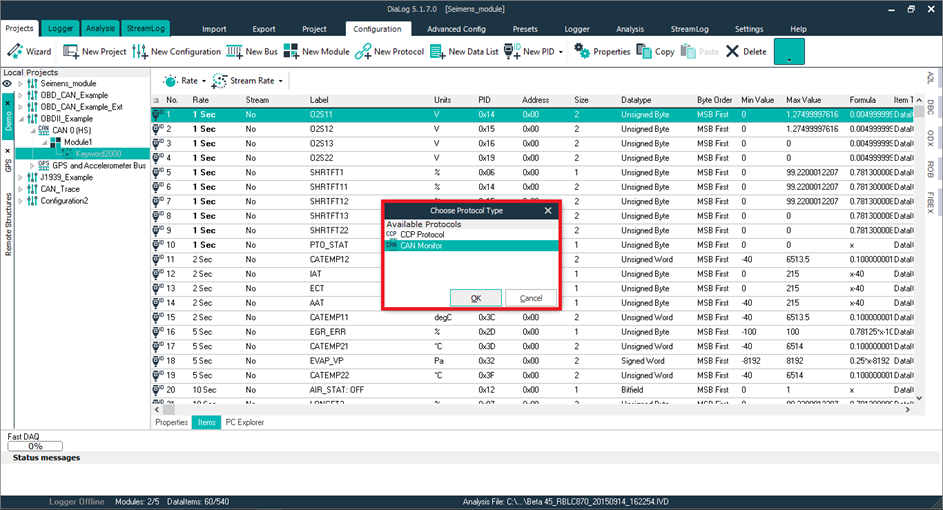

Select the CAN Monitor protocol.
Assign the settings and Protocol Name.
Select the Import tab and click Load DBC.
#### Or

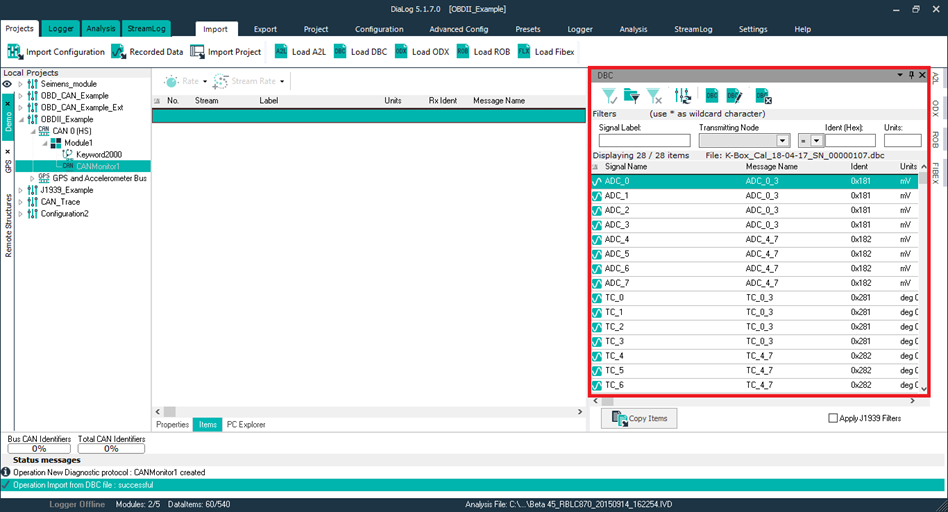

Click the DBC tab on the right side.
Click the open DBC file icon to browse and select the previously generated K-Box DBC.
Select the required signal from the DBC window.
Copy the selected signals and paste them into the DAQ list.
Send the configuration to the logger.
{% hint style="info" %}
**Notes:**
* You can have multiple buses in a single configuration. You can log OBD, A2L or ODX data along with K-Box.
{% endhint %}
