Configuring the K-TCxx

The K-TC 2.0xx comes pre-configured, but the configuration is programmable using the K-TC 2.0xx calibration utility. It requires installing the K-Box Calibration utility and a Kvaser Leaf Light/Memorator or an Influx ReXgen/Rebel.

For the above example, please install the Kvaser Drivers.

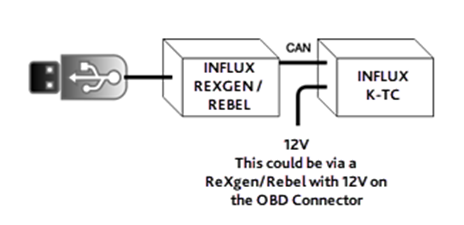

For the above example, please install the ReXgen/Rebel Drivers.

For the above example, please install the KTC Drivers.

Configuring via K-CAL

Set CAN ID of the messages containing thermocouple data.

Enable/ Disable the thermocouple channels.

Set CAN message transmission rate

Set Thermocouple type.

Commit to the changes made.

Export as DBC file Exporting a DBC file
