# Pinout details

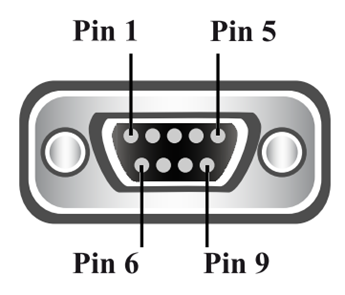

The Connector is a male and female 9-pin Standard D Type connector.

<figure><img src="https://1039220062-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRhWtYvkHNZy7Jvdnc3wk%2Fuploads%2F7mLkCjlddXaTjLdOUBc1%2Fimage.png?alt=media&#x26;token=7725c7d1-be2f-4cc1-9d36-53a1ca3529cd" alt=""><figcaption></figcaption></figure>

### PIN Details

<table data-header-hidden><thead><tr><th width="170"></th><th></th></tr></thead><tbody><tr><td><strong>Pin No</strong></td><td><strong>Pin Function</strong></td></tr><tr><td><strong>Pin 1</strong></td><td>NC</td></tr><tr><td><strong>Pin 2</strong></td><td>CAN - Low</td></tr><tr><td><strong>Pin 3</strong></td><td>CAN Ground</td></tr><tr><td><strong>Pin 4</strong></td><td>NC</td></tr><tr><td><strong>Pin 5</strong></td><td>Power GND</td></tr><tr><td><strong>Pin 6</strong></td><td>NC</td></tr><tr><td><strong>Pin 7</strong></td><td>CAN - High</td></tr><tr><td><strong>Pin 8</strong></td><td>NC</td></tr><tr><td><strong>Pin 9</strong></td><td>Power Supply 4.5 – 31V</td></tr></tbody></table>

{% hint style="info" %}

#### Note:

* Please ensure you use Pin-3 for Signal Ground and Pin-5 for Power Ground.
* The TC-32 device cannot be powered via the USB cable. Please provide a separate 12V power supply for proper functionality.
  {% endhint %}
