# Retrieving the Datalog

### Step 1

Connect the logger to the PC via USB.

Status Bar will display the logger status and time information.

### Step 2

Click on the "Internal Storage"

<img src="https://1039220062-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRhWtYvkHNZy7Jvdnc3wk%2Fuploads%2FDB6HCbuAJZfGvE3jhA8U%2Fimage.png?alt=media&#x26;token=3842af3c-5b00-476a-9428-3e046e088e04" alt="" data-size="original">

The below window will open up:

<figure><img src="https://1039220062-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRhWtYvkHNZy7Jvdnc3wk%2Fuploads%2F1S0Ayngm1gKHs6REgx1Q%2Fimage.png?alt=media&#x26;token=ff38b020-01ef-4fd6-90b1-8ac827572534" alt=""><figcaption></figcaption></figure>

### Step 3

Load the XML confiugation which contain the channel names.

&#x20;![](https://1039220062-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRhWtYvkHNZy7Jvdnc3wk%2Fuploads%2FwBD7MrWVCm4JAGDhkbP7%2Fimage.png?alt=media\&token=64a3cfa9-7112-41c8-87db-4ba29e83854c)&#x20;

### Step 4

The log files in the internal logger memory will be displayed.

Select the files to be retrieved.

### Step 5

Click Export.

&#x20;![](https://1039220062-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRhWtYvkHNZy7Jvdnc3wk%2Fuploads%2FkaUxVbkvJPVDLT7PWIeG%2Fimage.png?alt=media\&token=25461132-d4fa-4c51-98e1-d2658332458e)

### Step 6

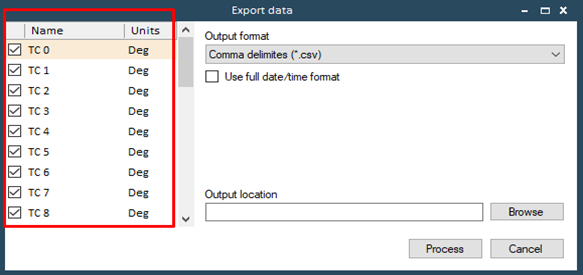

Select the TC channel required for exporting.

<figure><img src="https://1039220062-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRhWtYvkHNZy7Jvdnc3wk%2Fuploads%2F6XJ34XJYJIHkjAKxjxF7%2Fimage.png?alt=media&#x26;token=8f5e40b3-f193-4461-929f-24534c5d466c" alt=""><figcaption></figcaption></figure>

### Step 7

&#x20;Select the required output format.

<figure><img src="https://1039220062-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRhWtYvkHNZy7Jvdnc3wk%2Fuploads%2FQ4dxa1kmog2Kt4JAxCzW%2Fimage.png?alt=media&#x26;token=47241f07-c503-45c7-876c-7191d643a9a8" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}

#### Notes:

* Enabling "Use full date/time "allows user to export data in real-time stamp "dd:mm: yyyy: hh:mm:ss"
  {% endhint %}

### Step 8

&#x20;Browse and choose a location to save the data

<figure><img src="https://1039220062-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRhWtYvkHNZy7Jvdnc3wk%2Fuploads%2FLevEfYnkJfQPoahwx25X%2Fimage.png?alt=media&#x26;token=d94006bb-d248-48b0-a57e-5f31f8be89af" alt=""><figcaption></figcaption></figure>

### Step 9

Click process to export the file

<figure><img src="https://1039220062-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRhWtYvkHNZy7Jvdnc3wk%2Fuploads%2FWYZBpPfwEDLNQwCBNcd1%2Fimage.png?alt=media&#x26;token=45168cee-55ef-44d7-92d4-3f25c9922fcc" alt=""><figcaption></figcaption></figure>
