ASAMMDFGUI Guide

ASAMMADF is an open-source tool that helps convert a CAN DBC file to human-readable physical values and lets you automate the operation with minimal code with the ability to create advanced graphics with scaled values for analysis. Using the AMAMDF GUI tool, one can

• Visualize channels

• Compare channels from multiple files in the same plot

• See channel, conversion and source metadata as stored in the MDF file

• Access library functionality for single files (convert, export, cut, filter, resample, scramble) and multiple files (concatenate, stack)

Software Download link

Click here for more information about the ASAMMDFGUI software

For complete documentation on ASAMMDF, click here.

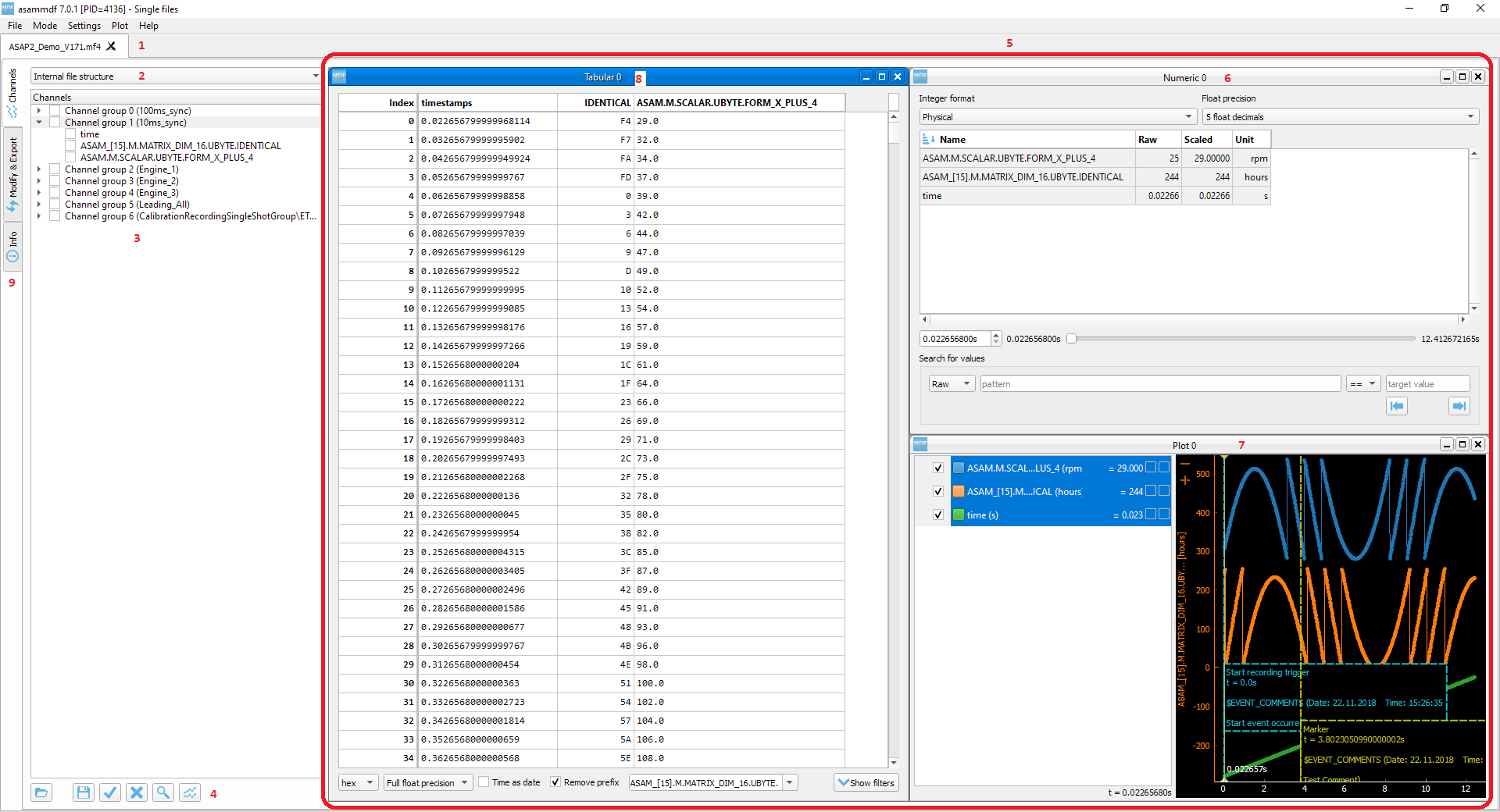

ASAMMDF GUI Layout Elements

This page includes a step-by-step illustration of how ASAMMDFGUI Software can help view/filter/merge/export/analyse CAN/CAN FD/LIN data when used with the ReXgen devices from Influx. One can use the ASMMDF tool to:

View the Raw CAN/CAN FD Data.

Export the Raw CAN/CAN FD Data into CSV or .mat.

Export the Signals from CAN/CAN FD Data into CSV using a DBC file.

Export the Signals from CAN/CAN FD Data into .mf4 using a DBC file.

View the Signals from CAN/CAN FD Data into .mf4 using a DBC file.

Merge multiple log files.
