# Adding S3 Trigger for Lambda

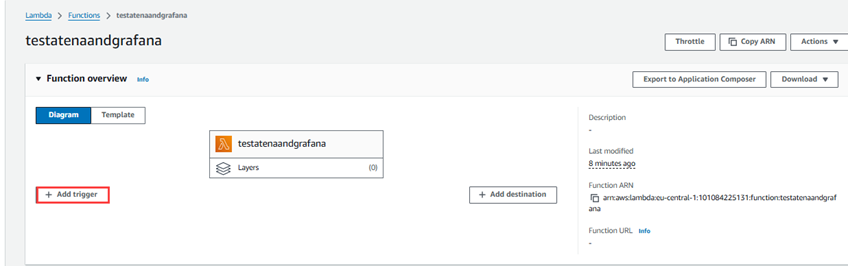

#### Click on 'Add trigger'

{% hint style="info" %}
**Note:**

* These parameters may change depending on the DBC use, such as the size of the DBC.
  {% endhint %}

<figure><img src="https://1612018018-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTCRfbN5hBLeUzIaKHbJ7%2Fuploads%2F216ufu8dDlPxo4pSOUmh%2Fimage.png?alt=media&#x26;token=315690d1-ef07-4eb9-b6d1-1ac92903a52c" alt=""><figcaption></figcaption></figure>

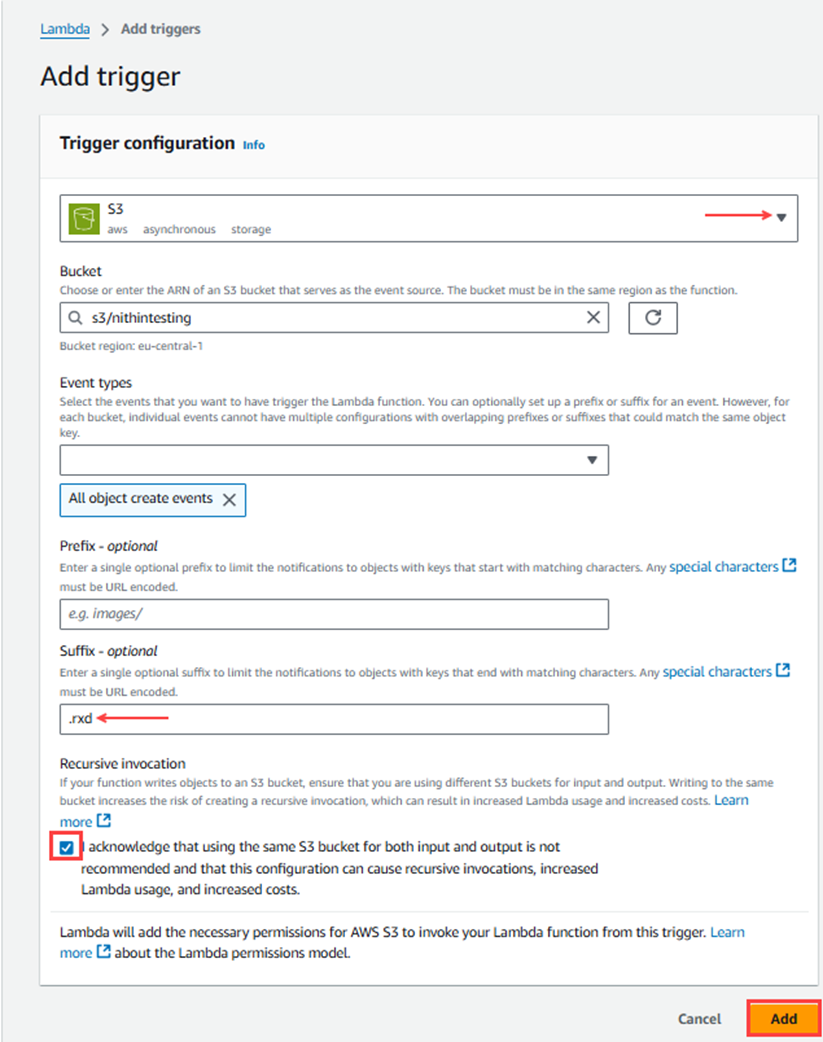

#### Select the following

* Source as S3.
* Select the Bucket to which the logger uploads data.
* Suffix add (.rxd).
* Acknowledge the warning.

<figure><img src="https://1612018018-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTCRfbN5hBLeUzIaKHbJ7%2Fuploads%2FxTM8qw0kWYekMuCHrcha%2Fimage.png?alt=media&#x26;token=b6284bef-28b4-40f5-ae07-fea32ce61c7f" alt=""><figcaption></figcaption></figure>

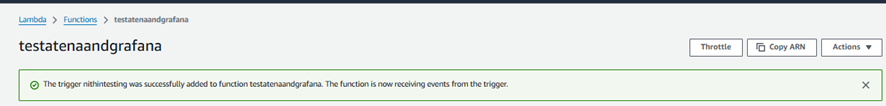

#### The trigger is successfully added.

<figure><img src="https://1612018018-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTCRfbN5hBLeUzIaKHbJ7%2Fuploads%2FnT1n6Pqn1dh2quc1V205%2Fimage.png?alt=media&#x26;token=47c16289-3b00-47c5-9594-d63bc84b2392" alt=""><figcaption></figcaption></figure>
