Configuring conversion settings

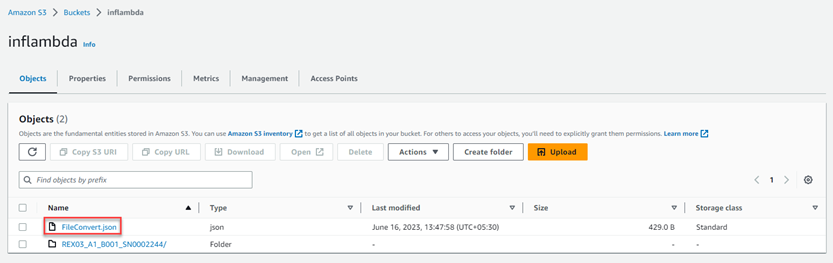

Upload the FileConvert.json file into the root folder of the Bucket.

Enable the required flags.

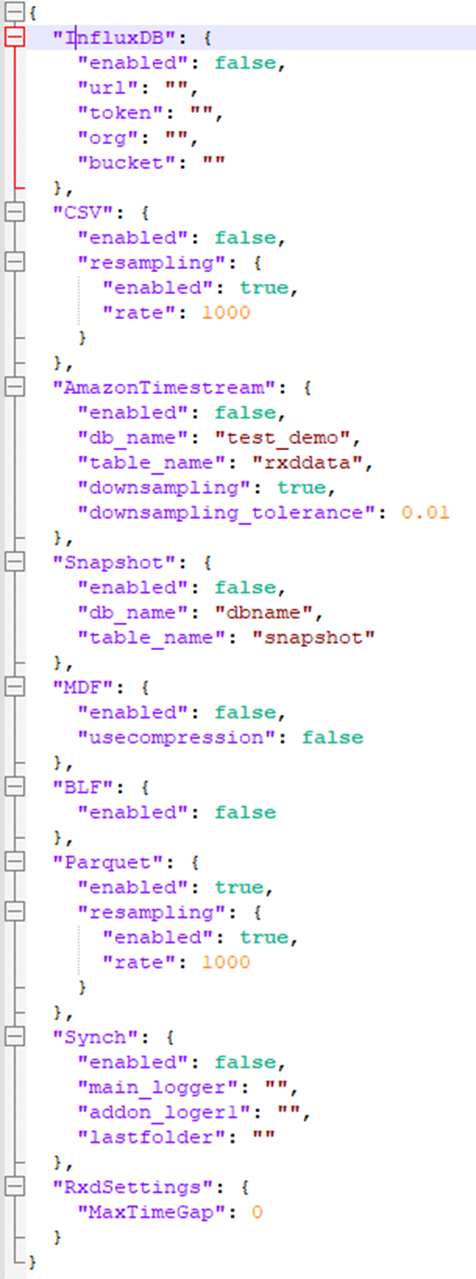

Editable example:

{
  "InfluxDB": {
    "enabled": false,
    "url": "",
    "token": "",
    "org": "",
    "bucket": ""
  },
  "CSV": {
    "enabled": false,
    "resampling": {
      "enabled": true,
      "rate": 1000
    }
  },
  "AmazonTimestream": {
    "enabled": false,
    "db_name": "test_demo",
    "table_name": "rxddata",
    "downsampling": true,
    "downsampling_tolerance": 0.01
  },
  "Snapshot": {
    "enabled": false,
    "db_name": "dbname",
    "table_name": "snapshot"
  },
  "MDF": {
    "enabled": false,
    "usecompression": false
  },
  "BLF": {
    "enabled": false
  },
  "Parquet": {
    "enabled": true,
    "resampling": {
      "enabled": true,
      "rate": 1000
    }
  },
  "Synch": {
    "enabled": false,
    "main_logger": "",
    "addon_loger1": "",
    "lastfolder": ""
  },
  "RxdSettings": {
    "MaxTimeGap": 0
  }
}
