# 2- Way Multiconnect Cable

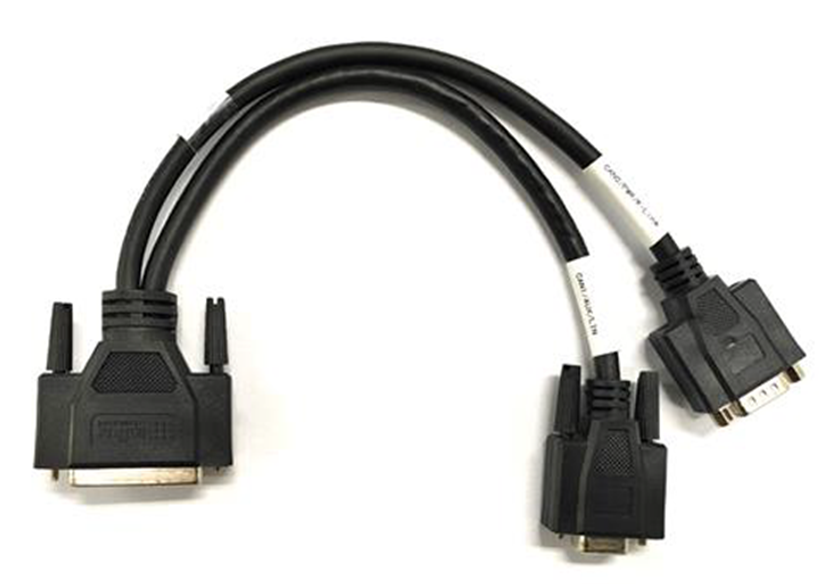

## DSub 25 Female with Screw to 2 x DSub 9 Cable

<figure><img src="https://1612018018-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTCRfbN5hBLeUzIaKHbJ7%2Fuploads%2FeritldLdBP405zMoFLkD%2Fimage.png?alt=media&#x26;token=65f956e1-7186-4552-a8b2-737bec3694bf" alt=""><figcaption></figcaption></figure>

### CAN 0/PWR/Kline Connector

Male 9-Pin D-Type Connector with Nuts

<figure><img src="https://1612018018-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTCRfbN5hBLeUzIaKHbJ7%2Fuploads%2FhfCo5xecM9CXZOKoHVWB%2Fimage.png?alt=media&#x26;token=ebf191b2-4499-42e4-8a64-82c72e80b2e0" alt=""><figcaption></figcaption></figure>

<table data-header-hidden><thead><tr><th width="184"></th><th></th></tr></thead><tbody><tr><td><strong>Pin Number</strong></td><td><strong>Function</strong></td></tr><tr><td>2</td><td>CAN Bus 0 Low</td></tr><tr><td>3</td><td>Signal Ground</td></tr><tr><td>4</td><td>K-Line</td></tr><tr><td>5</td><td>Power Ground</td></tr><tr><td>7</td><td>CAN Bus 0 High</td></tr><tr><td>9</td><td>Supply Voltage</td></tr></tbody></table>

### Aux/CAN 1 Connector

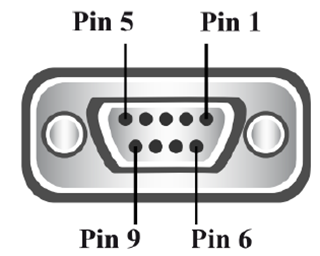

Female 9-Pin D-Type Connector with screws

<figure><img src="https://1612018018-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTCRfbN5hBLeUzIaKHbJ7%2Fuploads%2FVRfHwKjjuoZI85MBJYeT%2Fimage.png?alt=media&#x26;token=211db003-e5f2-4865-9b1c-3d7c081e9fe6" alt=""><figcaption></figcaption></figure>

<table data-header-hidden><thead><tr><th width="176.5"></th><th></th></tr></thead><tbody><tr><td><strong>Pin Number</strong></td><td><strong>Function</strong></td></tr><tr><td>2</td><td>CAN Bus 1 Low</td></tr><tr><td>3</td><td>Signal Ground</td></tr><tr><td>5</td><td>Power Ground</td></tr><tr><td>6</td><td>Digital Input/Output 0</td></tr><tr><td>7</td><td>CAN Bus 1 High</td></tr><tr><td>9</td><td>Power Supply Switched (Digital Input/Output 3)</td></tr></tbody></table>
